Description

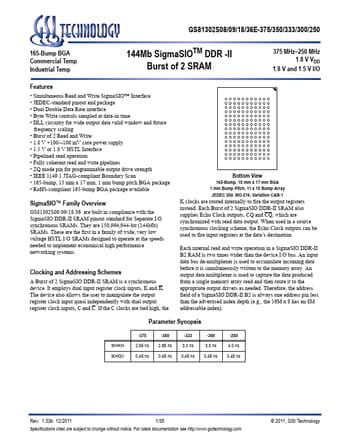

GS81302S08/09/18/36E-375/350/333/300/250 165-Bump BGA Commercial Temp Industrial Temp 144Mb SigmaSIOTM DDR -II Burst of 2 SRAM 375 MHz *250 .
Table
Symbol
Description
Type Comments
SA
Synchronous Address Inputs
Input.
R/W
Read/Write Contol Pin
Input Write Active Low; Read A.
Features
* Simultaneous Read and Write SigmaSIO™ Interface
* JEDEC-standard pinout and package
* Dual Double Data Rate interface
* Byte Write controls sampled at data-in time
* DLL circuitry for wide output data valid window and future
frequency scaling
* Burst
