GS8342T18GE-300, GS8342T08E, 36Mb SigmaCIO DDR-II Burst SRAM

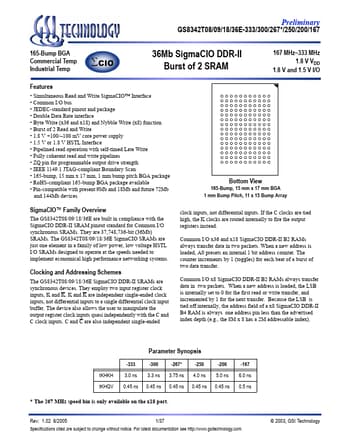

Preliminary GS8342T08/09/18/36E-333/300/267 */250/200/167 165-Bump BGA Commercial Temp Industrial Temp .
Table Symbol SA NC R/W BW0. BW3 NW0. NW1 LD K K C C TMS TDI TCK TDO VREF ZQ DQ Doff CQ CQ VDD VDDQ VSS Note: NC = Not Connected to die o.

GS8342T08E_GSITechnology.pdf

GS8342T18GE-300 Datasheet Preview — This datasheet PDF includes multiple part numbers: GS8342T18GE-300, GS8342T08E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GS8342T18GE-300, GS8342T08E

Manufacturer:

GSI Technology

File Size:

2.33 MB

Description:

36Mb SigmaCIO DDR-II Burst SRAM

Note:

This datasheet PDF includes multiple part numbers: GS8342T18GE-300, GS8342T08E.
Please refer to the document for exact specifications by model.

Features

* Simultaneous Read and Write SigmaCIO™ Interface
* Common I/O bus
* JEDEC-standard pinout and package
* Double Data Rate interface
* Byte Write (x36 and x18) and Nybble Write (x8) function
* Burst of 2 Read and Write
* 1.8 V +100/
* 100

Applications

* Therefore, the SigmaCIO DDR-II SRAM interface and truth table are optimized for burst reads and writes. Common I/O SRAMs are unpopular in applications where alternating reads and writes are needed because bus turnaround delays can cut high speed Common I/O SRAM data bandwidth in half. Burst Operat
