GS8334

The GS8334 is 350KHZ Zero-Drift CMOS Rail-to-Rail IO Opamp designed by GAINSIL.

Product Overview

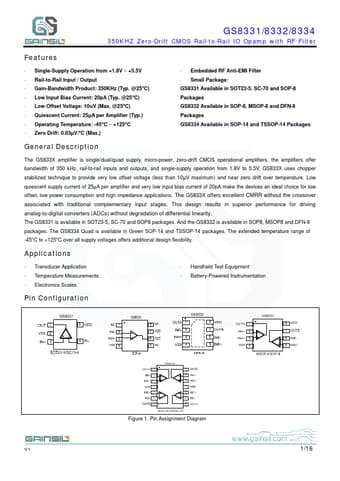

GS8334 350KHZ Zero-Drift CMOS Rail-to-Rail IO Opamp by GAINSIL - Datasheet Preview — Datasheet preview – GS8334

Datasheet Details

Part number	GS8334, GS8331
Manufacturer	GAINSIL
File Size	299.31 KB
Description	350KHZ Zero-Drift CMOS Rail-to-Rail IO Opamp
Datasheet	GS8331-GAINSIL.pdf
Note	This datasheet PDF includes multiple part numbers: GS8334, GS8331. Please refer to the document for exact specifications by model.
Additional preview pages of the GS8334 datasheet.

Product details

Description

The GS833X amplifier is single/dual/quad supply, micro-power, zero-drift CMOS operational amplifiers, the amplifiers offer bandwidth of 350 kHz, rail-to-rail inputs and outputs, and single-supply operation from 1.8V to 5.5V.

Features

Single-Supply Operation from +1.8V ~ +5.5V.
Rail-to-Rail Input / Output.
Gain-Bandwidth Product: 350KHz (Typ. @25°C).
Low Input Bias Current: 20pA (Typ. @25°C).
Low Offset Voltage: 10uV (Max. @25°C).
Quiescent Current: 25μA per Amplifier (Typ. ).
Operating Temperature: -45°C ~ +125°C.
Zero Drift: 0.03µV/°C (Max. ).
Embedded RF Anti-EMI Filter.
Small Package: GS8331 Available in SOT23-5, SC-70 and SOP-8 Packages GS8332 Available in SOP-8, MSOP-8.
