GS8330DW72, GS8330DW36 (GS8330DW36/72) 36M Double Late Write SRAM

GS8330DW72 Description

Preliminary GS8330DW36/72C-250/200 209-Bump BGA Commercial Temp Industrial Temp 36Mb Σ1x1Dp CMOS I/O Double Late Write SigmaRAM™ 200 MHz *250.
Because SigmaRAMs are synchronous devices, address data inputs and read/write control inputs are captured on the rising edge of the input clock.

GS8330DW72 Features

* Double Late Write mode, Pipelined Read mode
* JEDEC-standard SigmaRAM™ pinout and package
* 1.8 V +150/
* 100 mV core power supply
* 1.8 V CMOS Interface
* ZQ controlled user-selectable output drive strength
* Dual Cycle Deselect
* Burs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS8330DW72, GS8330DW36. Please refer to the document for exact specifications by model.

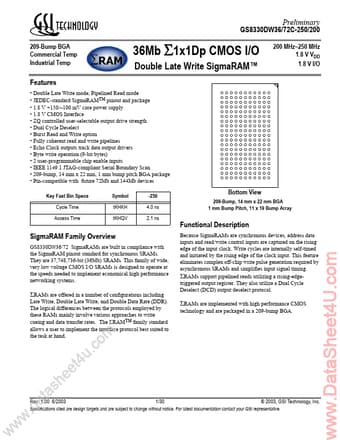

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS8330DW72, GS8330DW36
Manufacturer
GSI Technology
File Size
632.01 KB
Datasheet
GS8330DW36_GSITechnology.pdf
Description
(GS8330DW36/72) 36M Double Late Write SRAM
Note
This datasheet PDF includes multiple part numbers: GS8330DW72, GS8330DW36.
Please refer to the document for exact specifications by model.
