GS8330DW36

The GS8330DW36 is (GS8330DW36/72) 36M Double Late Write SRAM designed by GSI Technology.

Product Overview

GSI Technology

📥 Download Datasheet

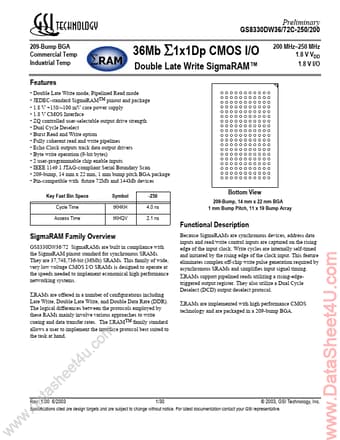

GS8330DW36 (GS8330DW36/72) 36M Double Late Write SRAM by GSI Technology - Datasheet Preview — Datasheet preview – GS8330DW36

Datasheet Details

Part number	GS8330DW36
Manufacturer	GSI Technology
File Size	632.01 KB
Description	(GS8330DW36/72) 36M Double Late Write SRAM
Datasheet	GS8330DW36_GSITechnology.pdf
Additional preview pages of the GS8330DW36 datasheet.

Product details

Description

Because SigmaRAMs are synchronous devices, address data inputs and read/write control inputs are captured on the rising edge of the input clock.

Features

Double Late Write mode, Pipelined Read mode.
JEDEC-standard SigmaRAM™ pinout and package.
1.8 V +150/.
100 mV core power supply.
1.8 V CMOS Interface.
ZQ controlled user-selectable output drive strength.
Dual Cycle Deselect.
Burst Read and Write option.
Fully coherent read and write pipelines.
Echo Clock outputs track data output drivers.
Byte write operation (9-bit bytes).
2 user-programma.
