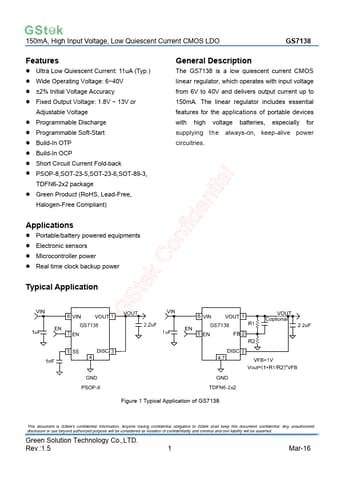

GS7138 Datasheet, LDO, GStek

GS7138 Features

• Ldo
• Ultra Low Quiescent Current: 11uA (Typ.)
• Wide Operating Voltage: 6~40V
• ±2% Initial Voltage Accuracy
• Fixed Output Voltage: 1.8V ~ 13V or Adjustabl

PDF File Details

Part number:

GS7138

Manufacturer:

GStek

File Size:

849.71kb

Download:

📄 Datasheet

Description:

Low quiescent current cmos ldo. The GS7138 is a low quiescent current CMOS linear regulator, which operates with input voltage from 6V to 40V and delivers output cur

GS7138 Application

• Applications of portable devices with high voltage batteries, especially for supplying the always-on, keep-alive power circuitries. Applications
