GS7168 Datasheet, Regulator, GStek

GS7168 Features

• Regulator
• 0.8A Low-Dropout Voltage Regulator
• Ultra Low Dropout Voltage Typically 100mV at 0.8A Output Current
• High Output Accuracy over Line, Load and Temperature

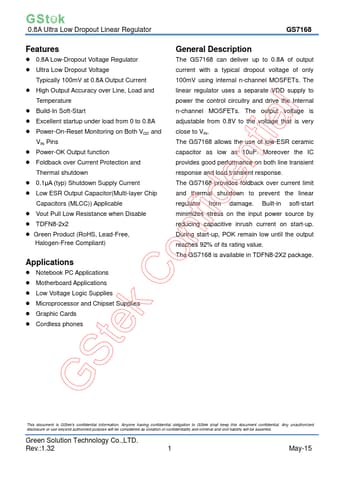

PDF File Details

Part number:

GS7168

Manufacturer:

GStek

File Size:

2.02MB

Download:

📄 Datasheet

Description:

0.8a ultra low dropout linear regulator. The GS7168 can deliver up to 0.8A of output current with a typical dropout voltage of only 100mV using internal n-channel MOSFETs

GS7168 Application

• Applications
• Notebook PC Applications
• Motherboard Applications
• Low Voltage Logic Supplies
• Microprocessor and

TAGS

GS7168

GStek
