GS7169 Datasheet, Regulator, GStek

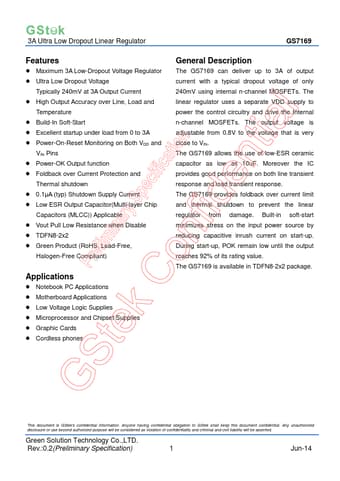

GS7169 Features

• Regulator
• Maximum 3A Low-Dropout Voltage Regulator
• Ultra Low Dropout Voltage Typically 240mV at 3A Output Current
• High Output Accuracy over Line, Load and Temperatur

PDF File Details

Part number:

GS7169

Manufacturer:

GStek

File Size:

2.18MB

Download:

📄 Datasheet

Description:

3a ultra low dropout linear regulator. The GS7169 can deliver up to 3A of output current with a typical dropout voltage of only 240mV using internal n-channel MOSFETs.

GS7169 Application

• Applications
• Notebook PC Applications
• Motherboard Applications
• Low Voltage Logic Supplies
• Microprocessor and
