GM1116 - 0.6A Low Dropout Positive Adjustable or Fixed-Mode Regulator

GM1116 Description

ISSUED DATE :2005/04/18 REVISED DATE :2006/06/05B The GM1116 is a low dropout at positive adjustable or fixed-mode regulator with minimum of 0.6A out.
G M 111 6 Features 1.

GM1116 Applications

* such as high-speed bus termination and low current 3.3V logic supply. GM1116 is also well suited for other applications such as VGA cards. GM1116 is guaranteed to have lower than 1.3V dropout at full load current making it ideal to provide well regulated outputs of 1.25V to 5.0V with up to 12V input

📥 Download Datasheet

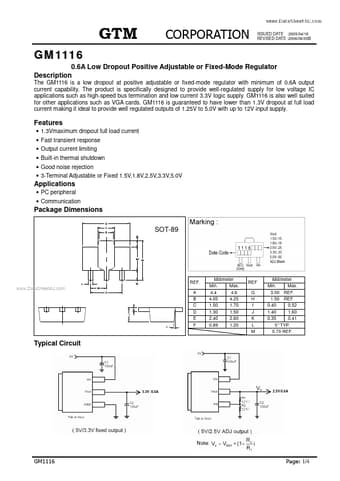

Preview of GM1116 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GM1116
Manufacturer
GTM CORPORATION
File Size
273.25 KB
Datasheet
GM1116_GTMCORPORATION.pdf
Description
0.6A Low Dropout Positive Adjustable or Fixed-Mode Regulator
