GM1188 - PNP SILICON EPITAXIAL TRANSISTOR

GM1188 Description

www.DataSheet4U.com CORPORATION G M 11 8 8 .
Features PNP SILICON EPITAXIAL TRANSISTOR The GM1188 is designed for medium power amplifier applications.

GM1188 Applications

* Low collector saturation voltage : VCE(sat)=-0.5V(Typ. ) Complementary pair with GM1766 ISSUED DATE :2005/07/19 REVISED DATE :2005/10/19B Package Dimensions SOT-89 REF. A B C D E F Millimeter Min. Max. 4.4 4.6 4.05 4.25 1.50 1.70 1.30 1.50 2.40 2.60 0.89 1.20 REF. G H I J K L M Millimeter Min

📥 Download Datasheet

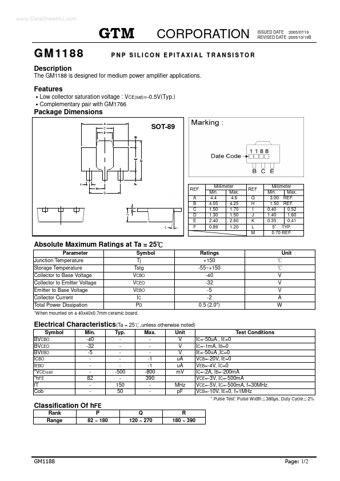

Preview of GM1188 PDF
datasheet Preview Page 2

Datasheet Details

Part number
GM1188
Manufacturer
GTM
File Size
385.16 KB
Datasheet
GM1188_GTM.pdf
Description
PNP SILICON EPITAXIAL TRANSISTOR
