GM164 Datasheet - GTM

P-channel Power MOSFET

GM164 Features

* Simple Drive Requirement

* Lower On-resistance

* Fast Switching Package Dimensions SOT-89 REF. A B C D E F Absolute Maximum Ratings Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage Continuous Drain Current Continuous Drain Current Pulsed Drain Current1 Total Power Diss

GM164 General Description

The GM164 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The GM164 is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.

GM164 Datasheet (233.53 KB)

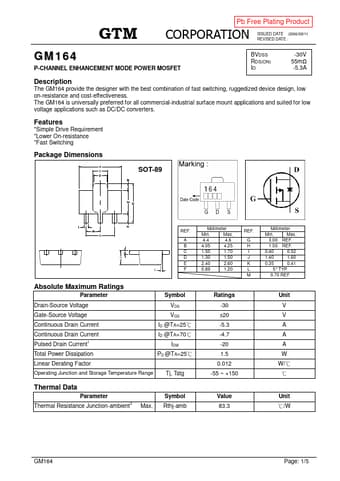

GM164 Datasheet Preview — Preview of GM164 PDF

Datasheet Details

Part number:

GM164

Manufacturer:

GTM

File Size:

233.53 KB

Description:

P-channel power mosfet.
Pb Free Plating Product ISSUED DATE :2006/09/11 REVISED DATE : GM164 P-CHANNEL ENHANCEMENT MODE POWER MOSFET BVDSS RDS(ON) ID -30V 55m -5.3A Descr.
