GM1616A

NPN EPITAXIAL PLANAR TRANSISTOR

GTM

GM1616A General Description

The GM1616A is designed for audio frequency power amplifier and medium speed switching. Package Dimensions SOT-89 REF. A B C D E F Millimeter Min. Max. 4.4 4.6 4.05 4.25 1.50 1.70 1.30 1.50 2.40 2.60 0.89 1.20 REF. G H I J K L M Millimeter Min. Max. 3.00 REF. 1.50 REF. 0.40 .

GM1616A Datasheet (258.01 KB)

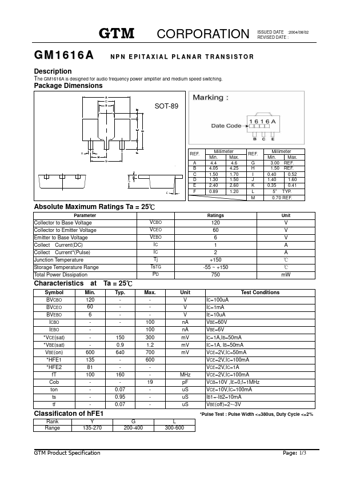

GM1616A Datasheet Preview — Preview of GM1616A PDF

Datasheet Details

Part number:

GM1616A

Manufacturer:

GTM

File Size:

258.01 KB

Description:

Npn epitaxial planar transistor.
