G5ULM2576 Datasheet - GTM

G5ULM2576 - Simple Switcher 3A Step-Down Voltage Regulator

www.DataSheet4U.com ISSUED DATE :2005/04/15 REVISED DATE : G5ULM2576 Simple Switcher 3A Step-Down Voltage Regulator The G5ULM2576 series of regulators are monolithic integrated circuits that provide all active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation.

These devices are available in fixed output voltage of 3.3v, 5v, 12v, 15v and an adjustable output version.

Requiring a minimum number of external components, these re

G5ULM2576 Features

* Applications 3.3V, 5.0V, 12V, 15V and adjustable output versions Adjustable version output voltage range , 1.23V to 37V Guaranteed 3A output current Wide input voltage range Efficient pre-regulator for linear regulators Requires only 4 external components 52kHz fixed frequency oscillator TTL shutd

G5ULM2576_GTM.pdf

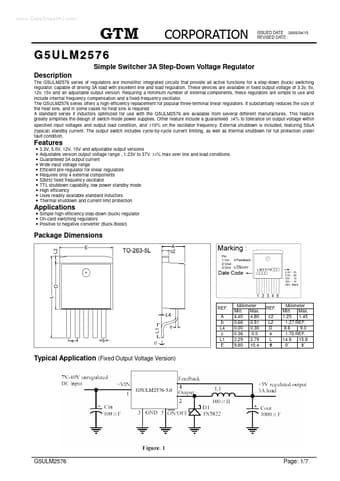

Preview of G5ULM2576 PDF
G5ULM2576 Datasheet Preview Page 2 G5ULM2576 Datasheet Preview Page 3

Datasheet Details

Part number:

G5ULM2576

Manufacturer:

GTM

File Size:

382.24 KB

Description:

Simple switcher 3a step-down voltage regulator.
