GB330

High Frequency Inverter

GB330 General Description

Package Dimensions EF. A B C D E F Millimeter Min. Max. 6.40 6.80 5.20 5.50 6.80 7.20 7.20 7.80 2.30 REF. 0.60 0.90 REF. G H J K L M Min. 0.50 2.20 0.45 0.45 0.90 5.40 Millimeter Max. 0.70 2.40 0.60 0.60 1.50 5.80 Absolute Maximum Ratings Parameter Junction Temperature Storage Temperature Typ.

GB330 Datasheet (236.15 KB)

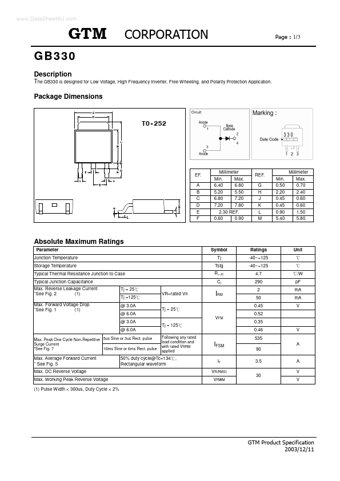

Preview of GB330 PDF

Datasheet Details

Part number:

GB330

Manufacturer:

GTM

File Size:

236.15 KB

Description:

High frequency inverter.
www.DataSheet4U.com 1/3 GB330 The GB330 is designed for Low Voltage, High Frequency Inverter, Free Wheeling, and Polarity Protection Application. D.
