GM6201 - CMOS Positive Voltage Regulator

GM6201 Description

ISSUED DATE :2005/10/11 REVISED DATE : GM6201 CMO S Po si ti ve Vol tag e Regu l ato r .
The GM6201 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies.

GM6201 Features

* Maximum Output Current: 250mA (Typ. )
* Output Voltage Range: 1.3V ~ 6V (selectable in 0.1V steps)
* Low Power Consumption: Typ. 2.0uA
* Maximum Operating Voltage: 10V
* Dropout Voltgae: 0.16V @IOUT=100mA
* Highly Accurate: Output voltage ± 2%
* Capacitors can be Tantalum or Ce

GM6201 Applications

* Battery Powered Equipment
* Mobile Phones and Cordless Phones
* Cameras and Video Recorders
* Portable Games and AV Equipment
* Reference Voltage Package Dimensions SOT-89 Typical Application Circuit REF. A B C D E F Millimeter Min. Max. 4.4 4.6 4.05 4.25 1.50 1.70 1.30

📥 Download Datasheet

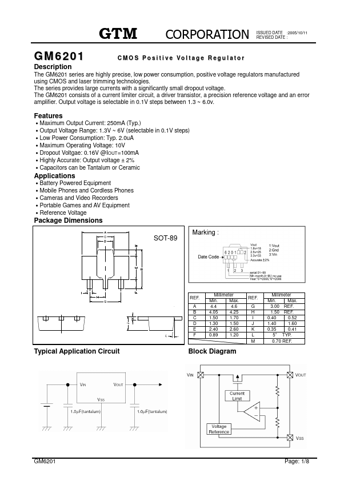

Preview of GM6201 PDF
