GMBCX53 - PNP SILICON EPITAXIAL TRANSISTOR

Features

  • P N P S I L I C O N E P I TA X I A L T R A N S I S T O R The GMBCX53 is designed for use in driver stages of audio amplifiers and medium power general purpose amplification. Collector-Emitter Voltage: VCEO=-80V Complementary to GMBCP56 Package Dimensions SOT-89 REF. A B C D E F Millimeter Min. Max. 4.4 4.6 4.05 4.25 1.50 1.70 1.30 1.50 2.40 2.60 0.89 1.20 REF. G H I J K L M Millimeter Min. Max. 3.00 REF. 1.50 REF. 0.40 0.52 1.40 1.60 0.35 0.41 5° TYP. 0.70 REF. Absolute Maximum Ratings.

📥 Download Datasheet

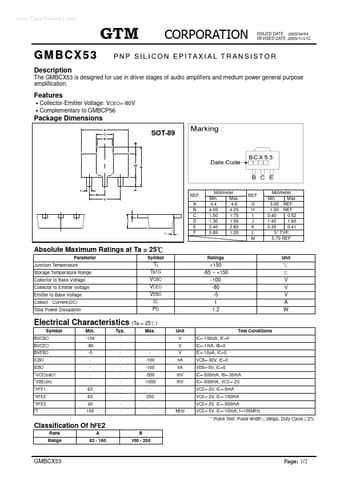

Datasheet preview – GMBCX53

Datasheet Details

Part number GMBCX53
Manufacturer GTM
File Size 239.23 KB
Description PNP SILICON EPITAXIAL TRANSISTOR
Datasheet download datasheet GMBCX53 Datasheet
Additional preview pages of the GMBCX53 datasheet.
