GS402SD - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Datasheet Summary

Description

S U R F A C E M O U N T, S C H O T T K Y B A R R I E R D I O D E V O LT A G E 3 0 V, C U R R E N T 0 .

The GS402SD is high frequency rectification for switching power supply.

REF.

📥 Download Datasheet

Datasheet preview – GS402SD

Datasheet Details

Part number GS402SD
Manufacturer GTM
File Size 189.03 KB
Description SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet download datasheet GS402SD Datasheet

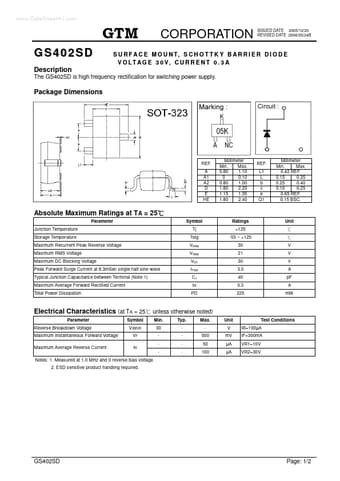

Additional preview pages of the GS402SD datasheet.
