GSBC846 NPN EPITAXIAL PLANAR TRANSISTOR

Package Dimensions NPN EPITAXIAL PLANAR TRANSISTOR The GSBC846 is designed for switching and AF amplifier application, suitable for automatic insertion in thick and thin-film circuits. REF. A A1 A2 D E HE Millimeter Min. Max. 0.80 1.10 0 0.10 0.80 1.00 1.80 2.20 1.15 1.35 1.80 2.40 REF. L1 L b .

GSBC846 Datasheet (194.97 KB)

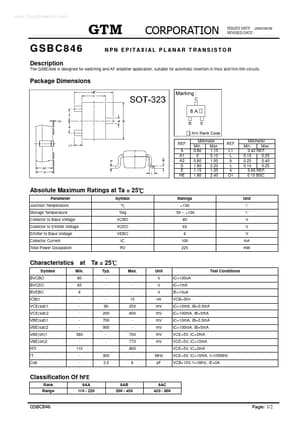

GSBC846 Datasheet Preview — Preview of GSBC846 PDF

Datasheet Details

Part number:

GSBC846

Manufacturer:

GTM

File Size:

194.97 KB

Description:

Npn epitaxial planar transistor.
