GSC4762 - NPN EPITAXIAL SILICON TRANSISTOR

Description

The GSC4672 is designed for low frequency amplifier applications.

Features

  • Low saturation voltage, typically VCE(sat) =0.1V at IC/IB=1A/50mA.
  • Excellent DC current gain characteristics Package Dimensions D E S1 TO-92 A b1 S E A T IN G PLANE L C e1 b e Absolute Maximum Ratings (TA=25к) Parameter Symbol Collector to Base Voltage VCBO Collector to Emitter Voltage VCEO Emitter to Base Voltage VEBO Collector Current (DC) IC Collector Current (Pulse PW=10ms) IC Total Device Dissipation PD Junction Temperature TJ Storage Temperature Tstg R.

📥 Download Datasheet

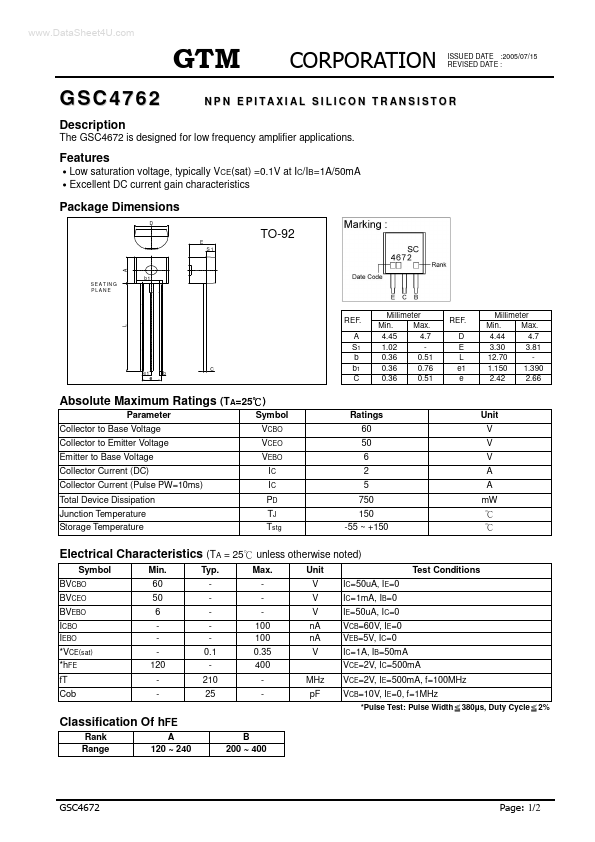

Datasheet preview – GSC4762

Datasheet Details

Part number GSC4762
Manufacturer GTM
File Size 185.40 KB
Description NPN EPITAXIAL SILICON TRANSISTOR
Datasheet download datasheet GSC4762 Datasheet
