GSC9575 P-CHANNEL ENHANCEMENT MODE POWER MOSFET

GSC9575 Description

Pb Free Plating Product ISSUED DATE :2005/03/18 REVISED DATE :2007/01/15C GSC9575 P-CHANNEL ENHANCEMENT MODE POWER MOSFET BVDSS RDS(ON) ID -60V 90m.
The GSC9575 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

GSC9575 Features

* Simple Drive Requirement
* Lower On-resistance
* Fast Switching Characteristic Package Dimensions REF. A B C D E F Millimeter Min. Max. 5.80 6.20 4.80 5.00 3.80 4.00 0° 8° 0.40 0.90 0.19 0.25 REF. M H L J K G Millimeter Min. Max. 0.10 0.25 0.35 0.49 1.35 1.75 0

📥 Download Datasheet

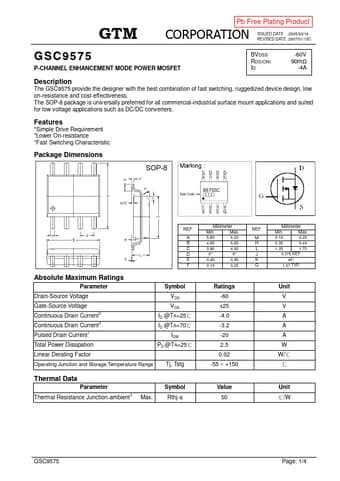

Preview of GSC9575 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GSC9575
Manufacturer
GTM
File Size
227.93 KB
Datasheet
GSC9575_GTM.pdf
Description
P-CHANNEL ENHANCEMENT MODE POWER MOSFET
