GSC-2401-R - 100/1000BASE- Tx Transformer

This page provides the datasheet information for the GSC-2401-R, a member of the GSC-2401-R-U 100/1000BASE- Tx Transformer family.

Datasheet Summary

Description

100/1000BASE- Tx Transformer Electrical Characteristics: @25℃ OCL:350uH Min @ 100KHz,200mV,with 8mA DC BIAS LL:0.5uH Max @100KHz,200mV Cw/w:25PF TYP @100KHz,200mV 　 DCR:1.4Ω Max Turn Ratio:1CT:1CT(TX)/1CT:1CT(RX)±5% Insertion Loss : 1-100MHz - 1.0dB Max Return Loss : 1-30MHz -18dB Min 40M

📥 Download Datasheet

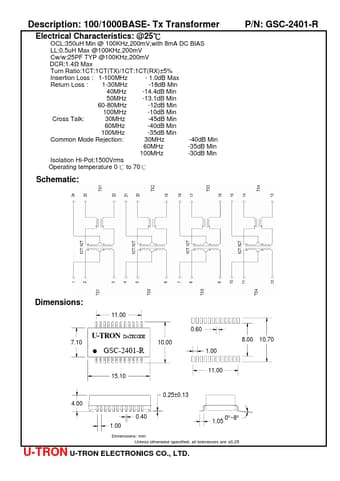

Datasheet preview – GSC-2401-R

Datasheet Details

Part number GSC-2401-R
Manufacturer U-TRON
File Size 73.91 KB
Description 100/1000BASE- Tx Transformer
Datasheet download datasheet GSC-2401-R Datasheet
Additional preview pages of the GSC-2401-R datasheet.

📁 Similar Datasheet

  • GSC103 - DUAL OP-AMP (GTM)
  • GSC103A - DUAL OPERATIONAL AMP AND VOLTAGE REFERENCE (GTM)
  • GSC1118 - 1A Positive Low Dropout Fixed-mode Regulator (GTM)
  • GSC1384 - NPN EPITAXIAL PLANAR TRANSISTOR (GTM)
  • GSC1473A - NPN SILICON TRANSISTOR (GTM)
  • GSC1815 - NPN SILICON TRANSISTOR (GTM)
  • GSC20-12 - 20 WATT GLOBAL PERFORMANCE SWITCHERS (SL Power Electronics)
  • GSC20-15 - 20 WATT GLOBAL PERFORMANCE SWITCHERS (SL Power Electronics)
  • GSC20-24 - 20 WATT GLOBAL PERFORMANCE SWITCHERS (SL Power Electronics)
  • GSC20-28 - 20 WATT GLOBAL PERFORMANCE SWITCHERS (SL Power Electronics)
Other Datasheets by U-TRON

Full PDF Text Transcription

Click to expand full text
Description: 100/1000BASE- Tx Transformer Electrical Characteristics: @25℃ OCL:350uH Min @ 100KHz,200mV,with 8mA DC BIAS LL:0.5uH Max @100KHz,200mV Cw/w:25PF TYP @100KHz,200mV 　 DCR:1.4Ω Max Turn Ratio:1CT:1CT(TX)/1CT:1CT(RX)±5% Insertion Loss : 1-100MHz - 1.0dB Max Return Loss : 1-30MHz -18dB Min 40MHz -14.4dB Min 50MHz -13.1dB Min 60-80MHz -12dB Min 100MHz -10dB Min Cross Talk: 30MHz -45dB Min 60MHz -40dB Min 100MHz -35dB Min Common Mode Rejection: 30MHz -40dB Min 60MHz -35dB Min 100MHz -30dB Min Isolation Hi-Pot:1500Vrms Operating temperature 0℃ to 70℃ Schematic: P/N: GSC-2401-R Dimensions: 11.00 U-TRON DATECODE 7.10 GSC-2401-R 10.00 0.60 1.00 8.00 10.70 15.10 11.00 0.25±0.13 4.00 0.40 1.00 1.
