SMF206B, SMF201B 2.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS

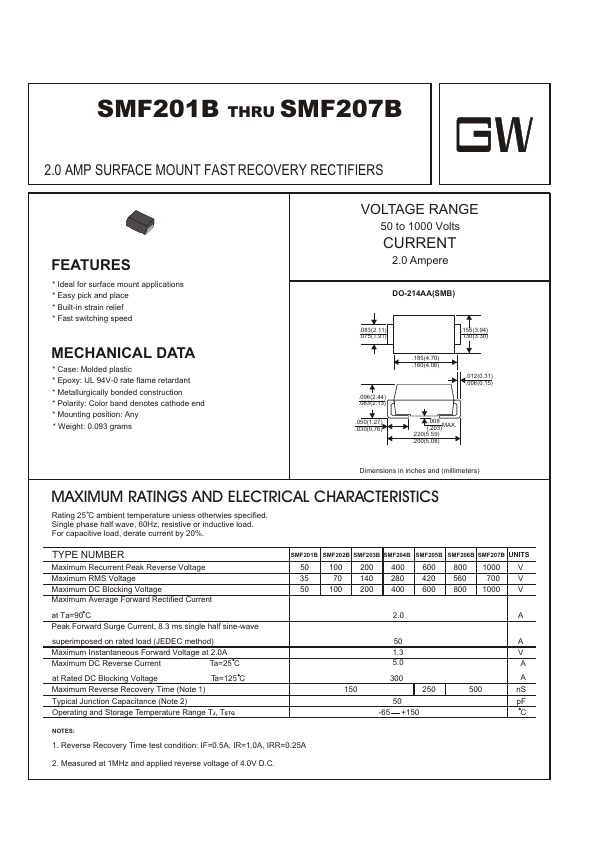

📥 Download Datasheet Datasheet Preview Page 1

Description

SMF201B THRU SMF207B 2.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMF206B, SMF201B. Please refer to the document for exact specifications by model.

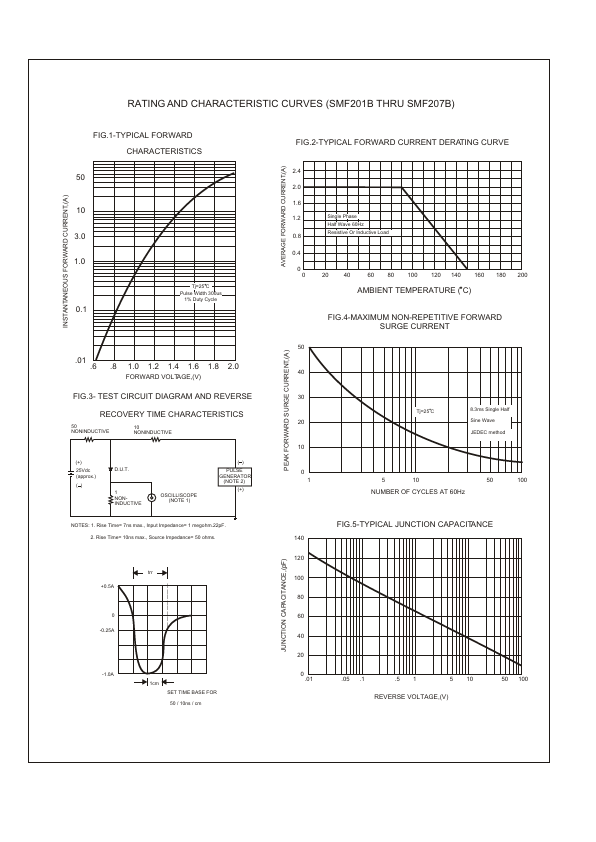

datasheet Preview Page 2

Datasheet Specifications

Part number
SMF206B, SMF201B
Manufacturer
GW
File Size
30.05 KB
Datasheet
SMF201B-GW.pdf
Description
2.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SMF206B, SMF201B.
Please refer to the document for exact specifications by model.

Applications

* Easy pick and place
* Built-in strain relief
* Fast switching speed MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Metallurgically bonded construction
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight:
