SMF202B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

This page provides the datasheet information for the SMF202B, a member of the SMF201B SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES family.

Datasheet Summary

Features

  • ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O B  M ec h an ic al D a ta                                                                  ! Case: SMB/DO-214AA, Molded Plastic A C ! Terminals: Solder Plated, Solderable per.

📥 Download Datasheet

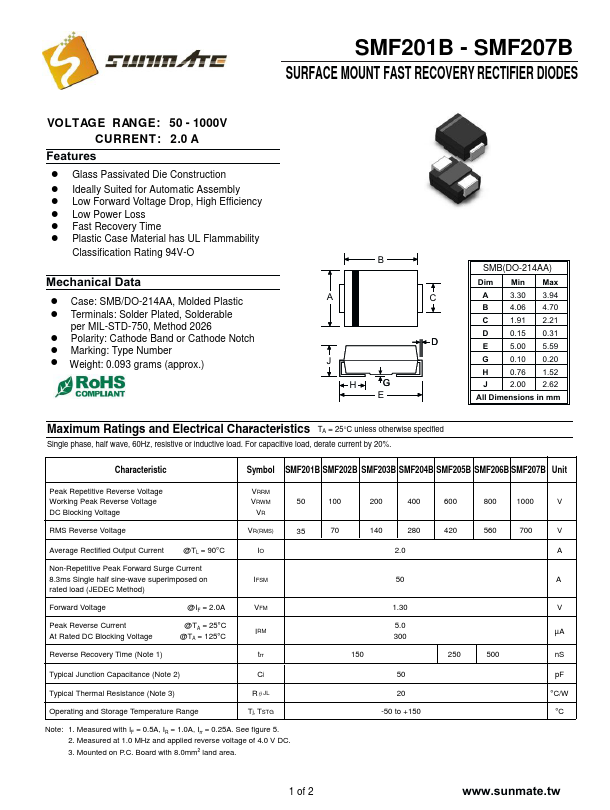

Datasheet preview – SMF202B

Datasheet Details

Part number SMF202B
Manufacturer Sunmate
File Size 250.34 KB
Description SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet download datasheet SMF202B Datasheet

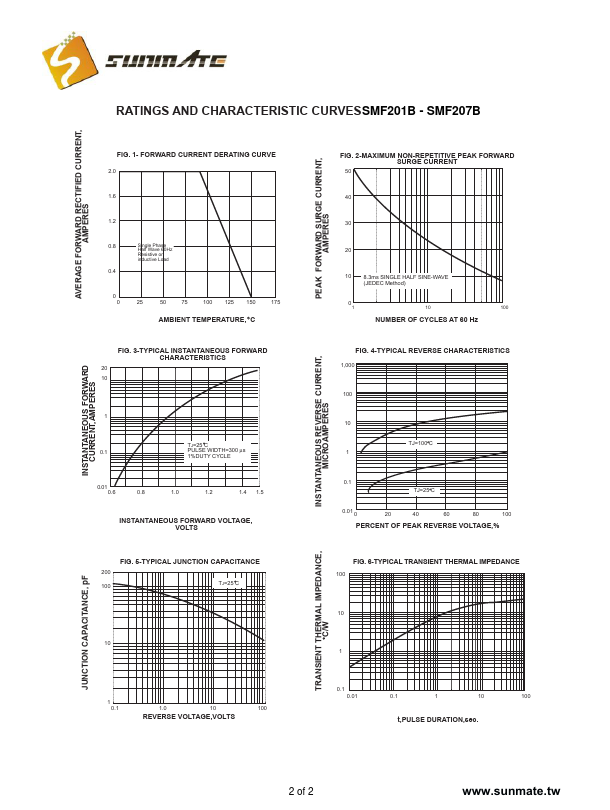

Additional preview pages of the SMF202B datasheet.

📁 Similar Datasheet

  • SMF202B - 2.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS (GW)
  • SMF202A - High Efficiency Recovery Rectifiers (SeCoS)
  • SMF202A - 2.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS (GW)
  • SMF20 - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (HY)
  • SMF200A - Surface Mount Transient Voltage (Rectron)
  • SMF200A - TVS Diodes (Littelfuse)
  • SMF200A - 200W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (WON-TOP)
  • SMF200A - SMD Transient Voltage Suppressor Diodes (Diotec)
  • SMF200A - Transient Voltage Suppressors (Eris)
  • SMF200A - Transient Voltage Suppressors (Semiware)
Other Datasheets by Sunmate
  • SMF201B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF203B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF204B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF205B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF206B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF207B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF301B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF301C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text
SMF201B - SMF207B SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A Features ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O B  M ec h an ic al D a ta                                                                  ! Case: SMB/DO-214AA, Molded Plastic A C ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch D ! Marking: Type Number ! Weight: 0.093 grams (approx.) J H G E SMB(DO-214AA) Dim Min Max A 3.30 3.
