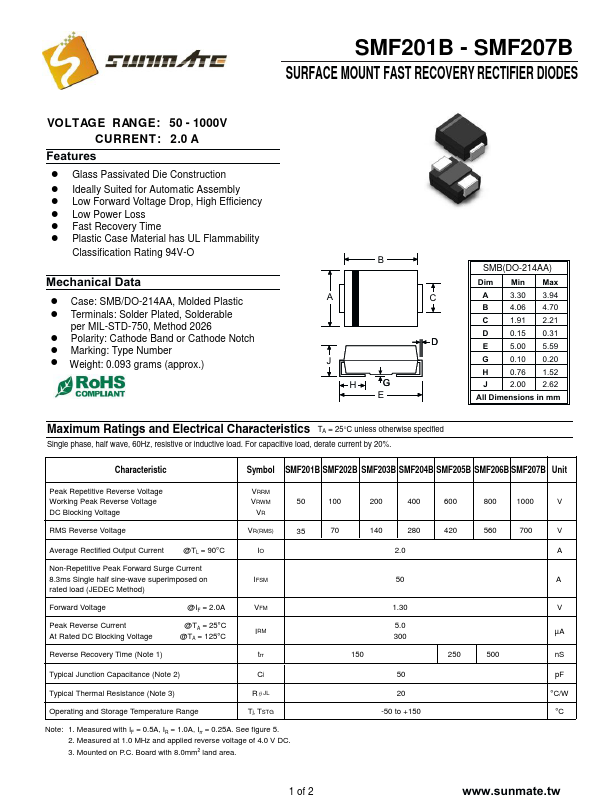

SMF205B, SMF201B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	SMF205B, SMF201B
Manufacturer	Sunmate
File Size	250.34 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	SMF201B-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: SMF205B, SMF201B. Please refer to the document for exact specifications by model.

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O B M ec h an ic al D a ta ! Case: SMB/DO-214AA, Molded Plastic A C ! Terminals: Solder Plated, Solderable per.
