SS230, SS220 Datasheet - GW

SS230 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SS230 Features

* Ideal for surface mount applications

* Easy pick and place

* Built-in strain relief

* Low forward voltage drop MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Metallurgically bonded construction

* Polarity: Color band denotes cathode

SS220-GW.pdf

This datasheet PDF includes multiple part numbers: SS230, SS220. Please refer to the document for exact specifications by model.

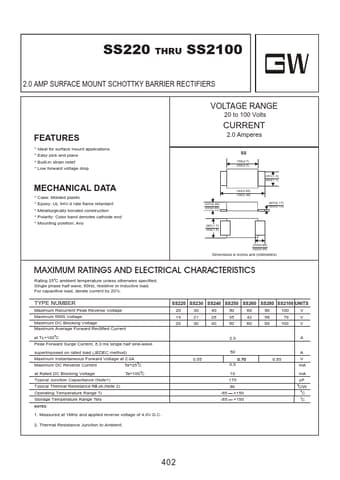

SS230 Datasheet Preview Page 2

Datasheet Details

Part number:

SS230, SS220

Manufacturer:

GW

File Size:

52.92 KB

Description:

2.0 amp surface mount schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SS230, SS220.
Please refer to the document for exact specifications by model.
