SS23, SS22-WON - 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE

WON-TOP

📥 Download Datasheet

SS23 Datasheet Preview — This datasheet PDF includes multiple part numbers: SS23, SS22-WON. Please refer to the document for exact specifications by model.

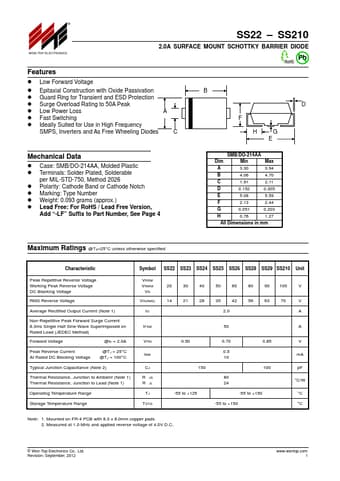

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SS23, SS22-WON
Manufacturer: WON-TOP
File Size: 39.15 KB
Datasheet: SS22-WON-TOP.pdf
Description: 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE
Note: This datasheet PDF includes multiple part numbers: SS23, SS22-WON.
Please refer to the document for exact specifications by model.

SS23 Product details

Features

Low Forward Voltage.
Epitaxial Construction with Oxide Passivation.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 50A Peak.
Low Power Loss A.
Fast Switching.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C B F HG E D Mechanical Data.
Case: SMB/DO-214AA, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band or Cathode N.
