TBL900P04 - P-Channel Enhancement Mode MOSFET

Name: TBL900P04
SKU: TBL900P04-1594648

Galaxy Microelectronics

The TBL900P04 by Galaxy Microelectronics is a P-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	TBL900P04
Manufacturer	Galaxy Microelectronics
File Size	641.12 KB
Description	P-Channel Enhancement Mode MOSFET
Datasheet	TBL900P04-GalaxyMicroelectronics.pdf

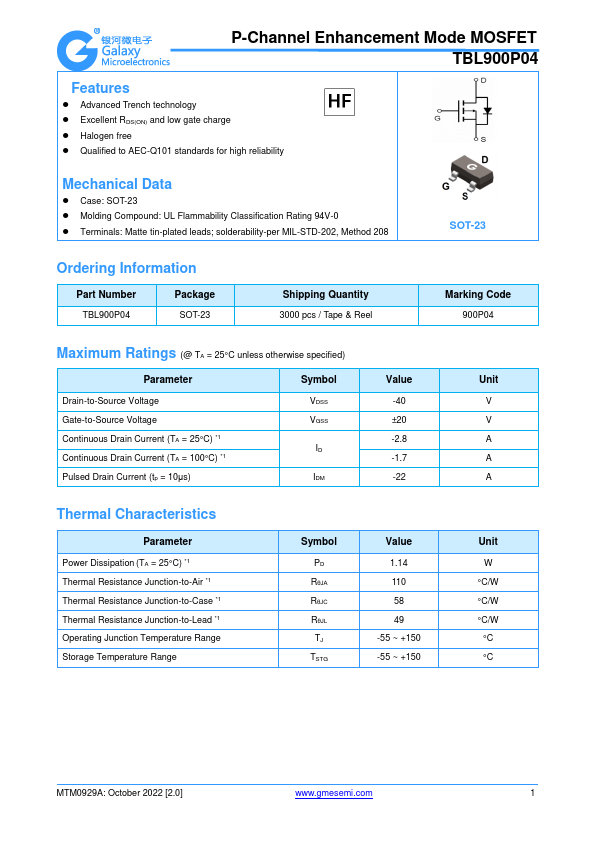

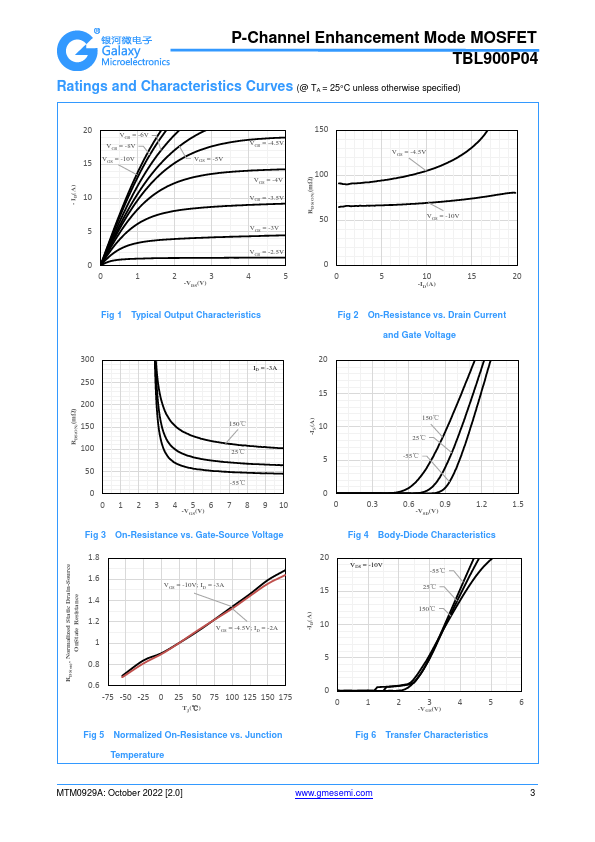

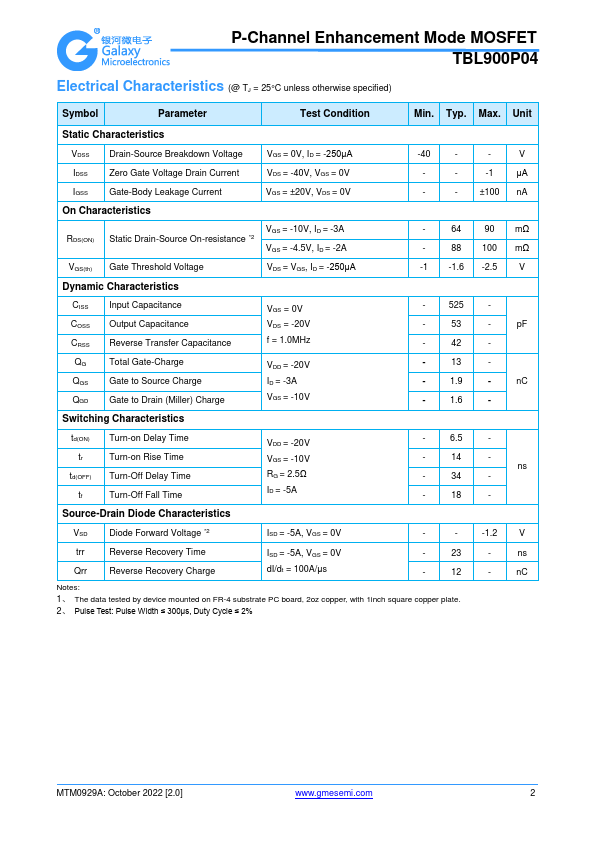

Additional preview pages of the TBL900P04 datasheet.

Advanced Trench technology.
Excellent RDS(ON) and low gate charge.
Halogen free.
Qualified to AEC-Q101 standards for high reliability Mechanical Data.
Case: SOT-23.
Molding Compound: UL Flammability Classification Rating 94V-0.
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number TBL900P04 Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code 900P04 Maximum Ratings (@ TA = 2.
