ICS1722

16 Pin Quicksaver Charge Controller For Ni-cd & Ni-mh Batteries

ICS1722 Features

* Charge termination methods include: Voltage slope Charge timers Four stage charge sequence: Soft start charge Fast charge Topping charge Maintenance charge Reverse-pulse charging available in all charge stages Nine programmable charge rates between 15 minutes (4C) and four hours

ICS1722 General Description

The ICS1722 is a CMOS device designed for the intelligent charge control of either nickel-cadmium (NiCd) or nickel-metal hydride (NiMH) batteries. The controller uses a pulsed-current charging technique together with voltage slope termination. The ICS1722 employs a four stage charge sequence that pr.

ICS1722 Datasheet (155.95 KB)

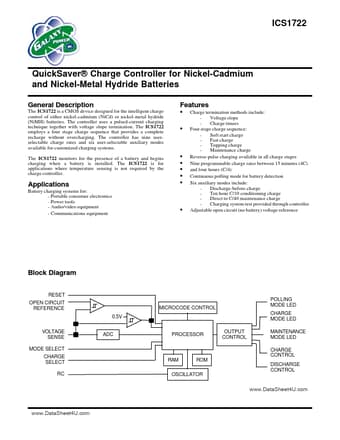

Preview of ICS1722 PDF

Datasheet Details

Part number:

ICS1722

Manufacturer:

Galaxy Power

File Size:

155.95 KB

Description:

16 pin quicksaver charge controller for ni-cd & ni-mh batteries.
