ICS1702

QuickSaver Charge Controller for Nickel-Cadmium and Nickel-Metal Hydride Batteries

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor GPI ICS1702M IC,BATTERY MANAGEMENT,CMOS,SOP,20PIN,PLASTIC Quest Components 222 64 units
$3.7

ICS1702 Datasheet (466.44 KB)

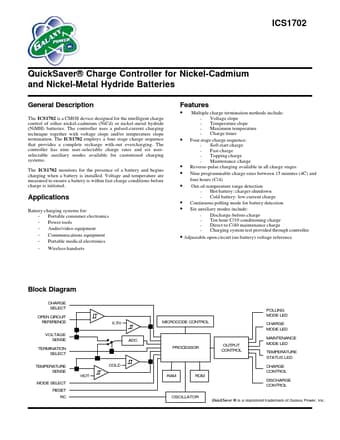

Preview of ICS1702 PDF

Datasheet Details

Part number:

ICS1702

Manufacturer:

ETC

File Size:

466.44 KB

Description:

Quicksaver charge controller for nickel-cadmium and nickel-metal hydride batteries.

ICS1702 Features

* Multiple charge termination methods include: Voltage slope Temperature slope Maximum temperature Charge timer

* Four stage charge sequence: Soft start charge Fast charge Topping charge Maintenance charge

* Reverse-pulse charging available in all charge stages

* Nine

ICS1702 General Description

The ICS1702 is a CMOS device designed for the intelligent charge control of either nickel-cadmium (NiCd) or nickel-metal hydride (NiMH) batteries. The controller uses a pulsed-current charging technique together with voltage slope and/or temperature slope termination. The ICS1702 employs a four stag.
