ICS1523

Video Clock Synthesizer

ICS1523 Features

* Low Jitter

* Wide input frequency range

* 15.734 kHz to 100 MHz

* PECL differential outputs

* Up to 250 MHz

* SSTL_3 Single-ended clock outputs

* Up to 150 MHz

* Dynamic Phase Adjust (DPA) for all outputs

* I2C controlled phas

ICS1523 General Description

The ICS1523 is a low-cost, high-performance frequency generator. It is well suited to general purpose phase controlled clock synthesis as well as line-locked and genlocked high-resolution video applications. Using IDT’s advanced low-voltage CMOS mixed-mode technology, the ICS1523 is an effective pha.

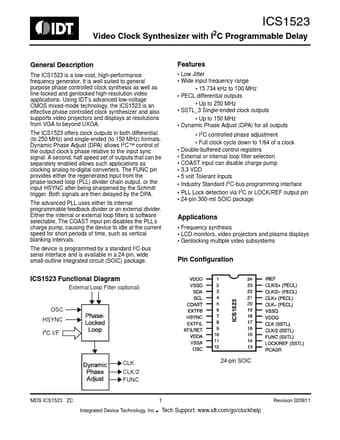

ICS1523 Datasheet (220.97 KB)

Preview of ICS1523 PDF

Datasheet Details

Part number:

ICS1523

Manufacturer:

IDT

File Size:

220.97 KB

Description:

Video clock synthesizer.
