ICS1531 - Triple 8-bit MSPS A/D Converters with Line-Locked Clock Generator

Product Overview

Integrated Circuit Systems

Part number	ICS1531
Manufacturer	Integrated Circuit Systems
File Size	529.99 KB
Description	Triple 8-bit MSPS A/D Converters with Line-Locked Clock Generator
Datasheet	ICS1531 Datasheet

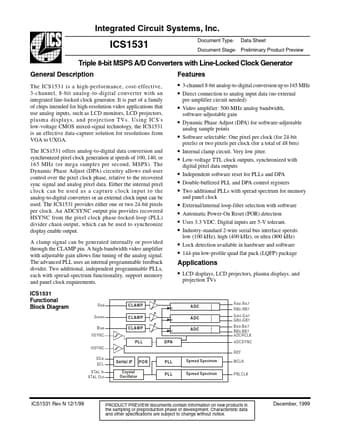

Additional preview pages of the ICS1531 datasheet.

The ICS1531 is a high-performance, cost-effective, 3-channel, 8-bit analog-to-digital converter with an integrated line-locked clock generator.

3-channel 8-bit analog-to-digital conversion up to 165 MHz.
Direct connection to analog input data (no external pre-amplifier circuit needed).
Video amplifier: 500-MHz analog bandwidth, software-adjustable gain.
Dynamic Phase Adjust (DPA) for software-adjustable analog sample points.
Software selectable: One pixel per clock (for 24-bit pixels) or two pixels per clock (for a total of 48 bits).
Internal clamp circuit. Very low jitter.
