ICS1524A, Dual Output Phase Controlled SSTL_3/PECL Clock Generator

Integrated Circuit Systems, Inc.ICS1524A Dual Output Phase Controlled SSTL_3/PECL Clock Generator General .
Features The ICS1524A is a low-cost, very high-performance. frequency generator and phase controlled clock synthe- sizer.

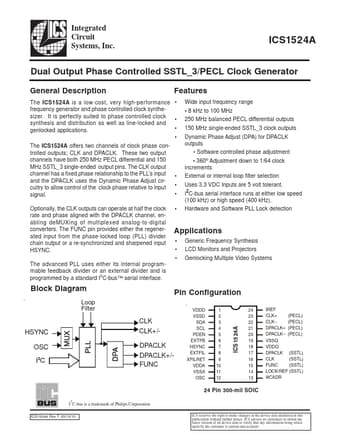

datasheet Preview Page 1 from Datasheet4u.com

ICS1524A-ICS.pdf

ICS1524A Datasheet Preview — Preview of ICS1524A PDF

Datasheet Details

Part number:

ICS1524A

Manufacturer:

ICS

File Size:

393.94 KB

Description:

Dual Output Phase Controlled SSTL_3/PECL Clock Generator

Features

* The ICS1524A is a low-cost, very high-performance

Applications

* The ICS1524A offers two channels of clock phase con- trolled outputs; CLK and DPACLK. These two output channels have both 250 MHz PECL differential and 150 MHz SSTL_3 single-ended output pins. The CLK output channel has a fixed phase relationship to the PLL’s in
