ICS1524

Dual Output Phase Controlled SSTL-3/PECL Clock Generator

ICS1524 Features

* Wide input frequency range

* 8 kHz to 100 MHz 250 MHz balanced PECL differential outputs 150 MHz single-ended SSTL_3 clock outputs Dynamic Phase Adjust (DPA) for DPACLK outputs

* Software controlled phase adjustment

* 360o Adjustment do

ICS1524 General Description

The ICS1524 is a low-cost, very high-performance frequency generator and phase controlled clock synthesizer. It is perfectly suited to phase controlled clock synthesis and distribution as well as line-locked and genlocked applications. The ICS1524 offers two channels of clock phase controlled output.

ICS1524 Datasheet (394.46 KB)

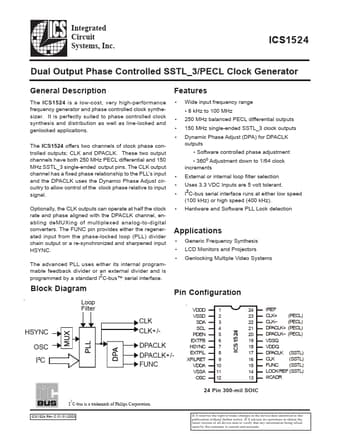

Preview of ICS1524 PDF

Datasheet Details

Part number:

ICS1524

Manufacturer:

Integrated Circuit Systems

File Size:

394.46 KB

Description:

Dual output phase controlled sstl-3/pecl clock generator.
