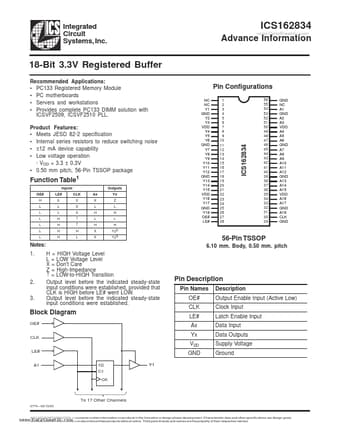

ICS162834 - 18-Bit 3.3V Registered Buffer

Pin Names OE# CLK LE# Ax Yx VDD GND Description Output Enable Input (Active Low) Clock Input Latch Enable Input Data Input Data Outputs Supply Voltage Ground Block Diagram OE# CLK LE# A1 1D C1 CK Y1 To 17 Other Channels 0774 *02/10/03 ADVANCE INFORMATION documents contain information on pr.

ICS162834 Features

* Meets JESD 82-2 specification

* Internal series resistors to reduce switching noise

* ±12 mA device capability

* Low voltage operation - VDD = 3.3 ± 0.3V

* 0.50 mm pitch, 56-Pin TSSOP package 1 Pin Configurations NC NC Y1 GND Y2 Y3 VDD Y4 Y5 Y6 GND Y7 Y8 Y
