ICS1660

Incoming Call Line Identification (ICLID) Receiver with Ring Detection

ICS1660 Features

* Ring Detection Low Battery Detection Internal 5V Regulator - can externally source 25mA FSK Demodulation Power-down in Standby Mode Direct Interface to Host Microprocessor or Microcomputer Applications

ICS1660 General Description

The ICS1660 “ICLID” circuit is a monolithic CMOS VLSI device that decodes and detects the Frequency Shift Keying (FSK) signals used in caller identification telephone service. The ICS1660, when used in conjunction with some external components, amplifies, filters and demodulates the FSK data transmi.

ICS1660 Datasheet (108.63 KB)

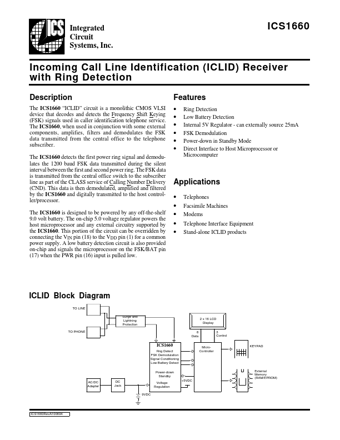

Preview of ICS1660 PDF

Datasheet Details

Part number:

ICS1660

Manufacturer:

Integrated Circuit Systems

File Size:

108.63 KB

Description:

Incoming call line identification (iclid) receiver with ring detection.
