ICS411

PC PERIPHERAL CLOCK

ICS411 Features

* Low operating voltage of 3.3 V Accepts 14.31818 MHz clock input to lower jitter Fixed dual 25 MHz clocks for Ethernet Fixed 24.576 MHz clock Power consumption of 15 mA (typ) extends battery life Duty cycle of 4

ICS411 General Description

The ICS411 is a cost-effective clock synthesizer developed to optimize component count for PC motherboard and peripheral applications. The device supports a common, low cost 14.31818 MHz crystal. The device locks all output frequencies to enhance system performance. By supporting common PC periphera.

ICS411 Datasheet (160.62 KB)

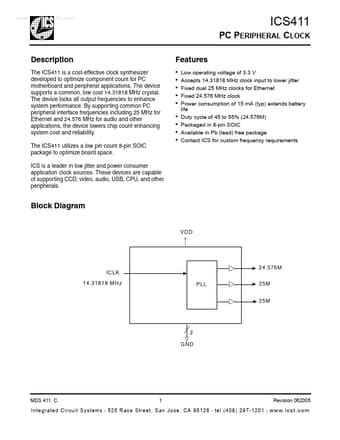

Preview of ICS411 PDF

Datasheet Details

Part number:

ICS411

Manufacturer:

ICS

File Size:

160.62 KB

Description:

Pc peripheral clock.
