ICS421004I-01 - CRYSTAL-TO-HSTL FREQUENCY SYNTHESIZER

The ICS8421004I-01 is a 4 output HSTL Synthesizer optimized to generate Ethernet HiPerClockS™ reference clock frequencies and is a member of the HiPerClocksTM family of high performance clock solutions from ICS.

Using a 25MHz 18pF parallel resonant crystal, the following frequencies can be generated

ICS421004I-01 Features

* Four HSTL outputs (VOHmax = 1.4V)

* Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input

* Supports the following output frequencies: 156.25MHz, 125MHz, 62.5MHz

* VCO range: 560MHz - 680MHz

* RMS phase jitter @ 156.25MHz, using a 25MHz

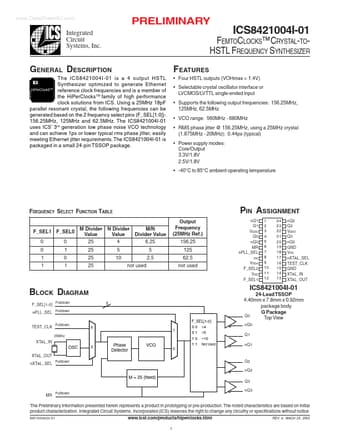

ICS421004I-01_ICS.pdf
