ICS4231-03

Low EMI Clock Generator

ICS4231-03 Features

* Pin and function compatible to Cypress W42C31-03 Packaged in 8-pin SOIC (Pb free available) Provides a spread spectrum output clock Accepts a clock or crystal input and provides same frequency dithered output Description The ICS4231-03 generates a low EMI out

ICS4231-03 General Description

The ICS4231-03 generates a low EMI output clock from a clock or crystal input. The device uses ICS’ proprietary mix of analog and digital Phase Locked Loop (PLL) technology to spread the frequency spectrum of the output, thereby reducing the frequency amplitude peaks by several dB. The ICS4231-03 of.

ICS4231-03 Datasheet (123.47 KB)

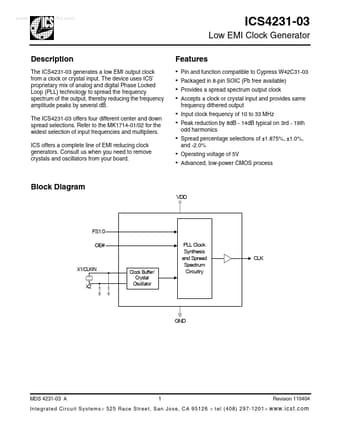

Preview of ICS4231-03 PDF

Datasheet Details

Part number:

ICS4231-03

Manufacturer:

ICS

File Size:

123.47 KB

Description:

Low emi clock generator.
