ICS487-25 - QUAD PLL

Renesas

📥 Download Datasheet

ICS487-25 Datasheet Preview — Preview of ICS487-25 PDF

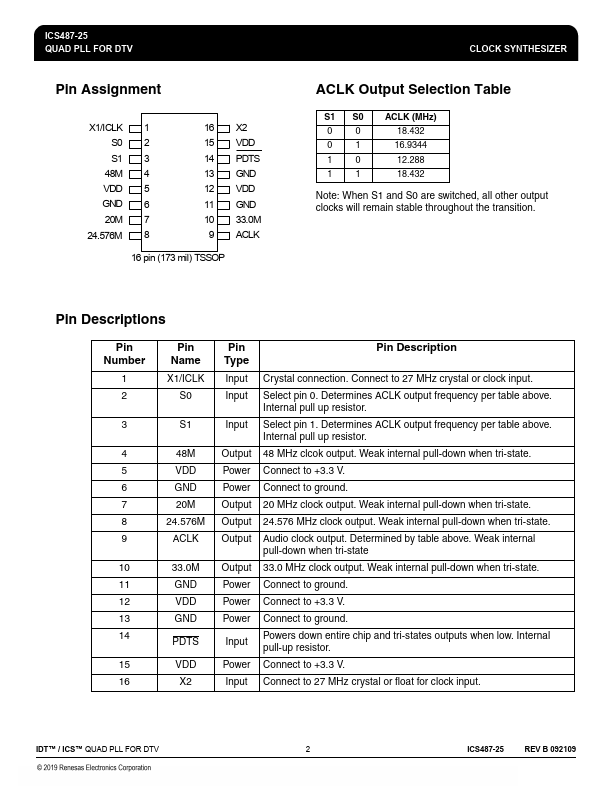

datasheet Preview Page 2

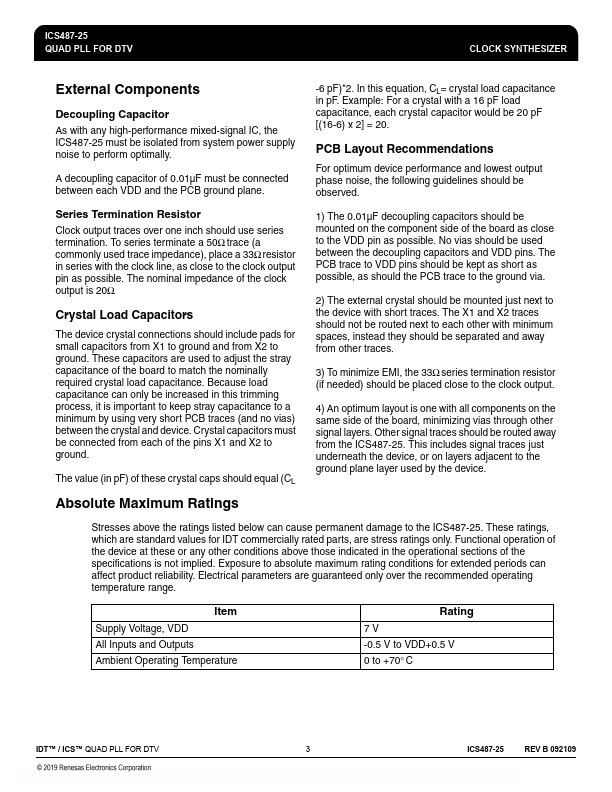

datasheet Preview Page 3

Datasheet Details

Part number	ICS487-25
Manufacturer	Renesas
File Size	318.89 KB
Description	QUAD PLL
Datasheet	ICS487-25-Renesas.pdf

ICS487-25 Product details

Description

The ICS487-25 generates five high-quality, high-frequency clock outputs.

Features

Packaged in 16-pin TSSOP (Pb-free).
Replaces multiple crystals and oscillators.
Input crystal or clock frequency of 27 MHz.
Zero ppm frequency synthesis error.
Duty cycle of 45/55.
Operating voltage of 3.3 V.

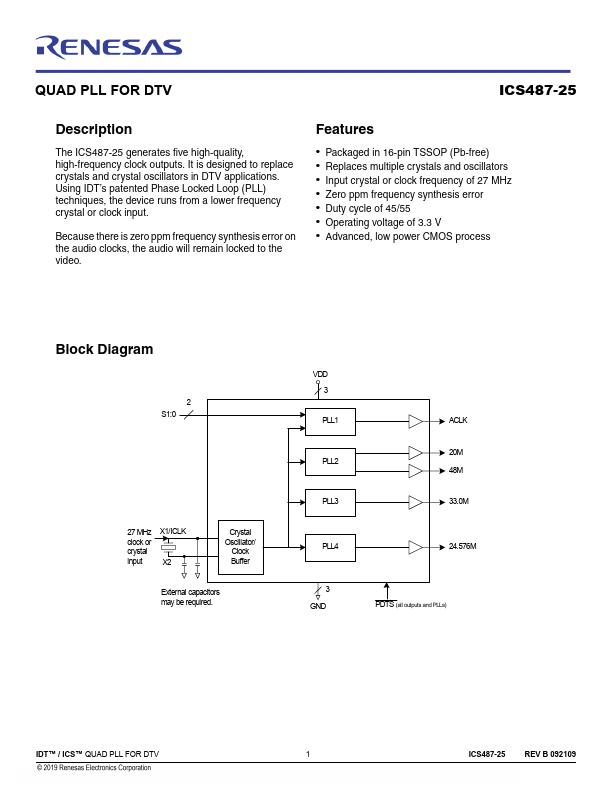

Advanced, low power CMOS process Block Diagram 2 S1:0 27 MHz clock or crystal input X1/ICLK X2 Crystal Oscillator/ Clock Buffer External capacitors may be required. VDD 3 PLL1 PLL2 PLL3 ACLK 20M 48M 33.0M PLL4 24.576M.
