GM1431

ADJUSTABLE SHUNT REGULATOR

GM1431 Features

* Sink Current Capability 1 mA to 100mA Low dynamic output impedance, 0.2W typ. 0.5%, 1% or 2% reference voltage tolerance Alternate for TL431, TL431, LM431 & AS431 Temperature range 0°C to+ 70 °C Available in SOT-23, TO-92, SOT-89 and SOP- 8 packages Application Switching power supplies Linear regul

GM1431 General Description

The GM1431 is a three terminal adjustable shunt regulator with thermal stability guaranteed over temperature. Output voltage can be adjusted to any value between 2.5V (Vref) and 36V by using two external resistors. The GM1431 has a typical dynamic output impedance of 0.2W. Active output circuitry pr.

GM1431 Datasheet (213.81 KB)

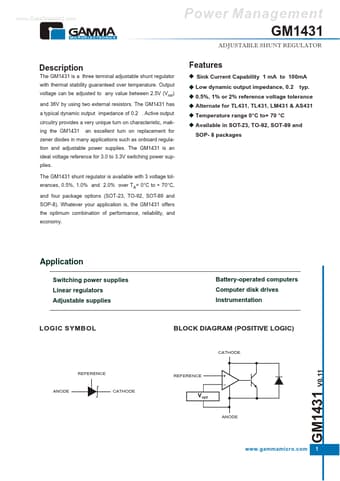

Preview of GM1431 PDF

Datasheet Details

Part number:

GM1431

Manufacturer:

Gamma Microelectronics

File Size:

213.81 KB

Description:

Adjustable shunt regulator.
