GM2102 - CONSTANT CURRENT DC/DC WHITE LED DRIVER

GM2102 Description

www.DataSheet4U.com PRELIMINARY GM2102 CONSTANT CURRENT DC/DC WHITE LED DRIVER GENERAL .
The GM2102 is a member of Gamma Microelectronics’s family of white LED drivers.

GM2102 Features

* Drives Six White LED’s from 1.8 V 1.2Mhz Fixed Frequency Switching Minimum operating input voltage 1.2V 90% efficiency Accurately adjustable LED current Current Regulation even when Vin > Vout Disconnects LED’s in Shutdo

GM2102 Applications

* TYPICAL APPLICATION 6.8 uH D1 APPLICATIONS
* Cellular Phones Digital Cameras Handheld Computers Portable Audio players Pagers Other White LED applications Vin 2.7V to 4.2V 6 C1 4.7 uF 1 SW C2 1 uF Vin PWM DIMMING CONTROL SIGNAL 5 GM2

📥 Download Datasheet

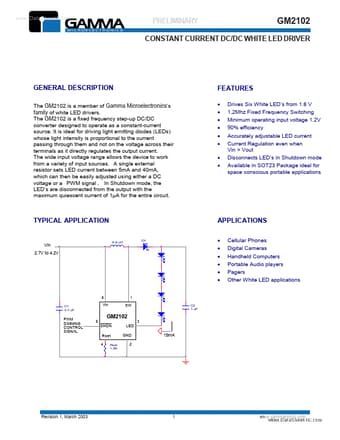

Preview of GM2102 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GM2102
Manufacturer
Gamma
File Size
226.74 KB
Datasheet
GM2102_Gamma.pdf
Description
CONSTANT CURRENT DC/DC WHITE LED DRIVER
