GM2526 - DUAL USB POWER SWITCH

GM2526 Description

www.DataSheet4U.com MICROELECTRONICS A A Power Management GM2526 DUAL USB POWER SWITCH Power Management .
GM2526 is a dual high-side integrated power switch with independent enable and flag functions, designed for selfpowered and bus-powered Universal Seri.

GM2526 Features

* Compliant to USB Specifications Two Independent Switches Input from 3V to 5.5V Min. Continuous Load Current 500mA per port Max. ON-Resistance 140mW Max. Short Circuit Current Limit 1.25A Individual Open-Drain Fault Flag Pins ON-State Supply Current 110µA (typ. ) OFF-State Supply Current 0.75µA (typ. )

GM2526 Applications

* GM2526 requires few external components. Each of the two switch channels supply up to 500mA as required by USB downstream devices. Each switch’s low on-resistance meets USB voltage drop requirements. Fault current is 750mA (typical). A flag output indicates fault conditions to the local USB control

📥 Download Datasheet

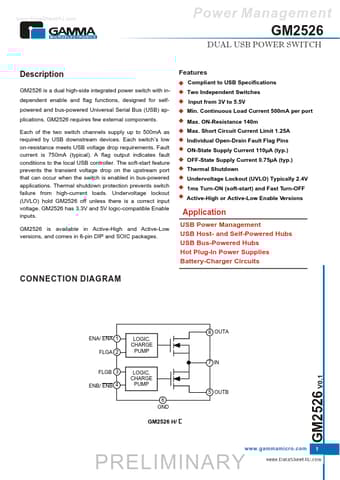

Preview of GM2526 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GM2526
Manufacturer
Gamma
File Size
294.62 KB
Datasheet
GM2526_Gamma.pdf
Description
DUAL USB POWER SWITCH
