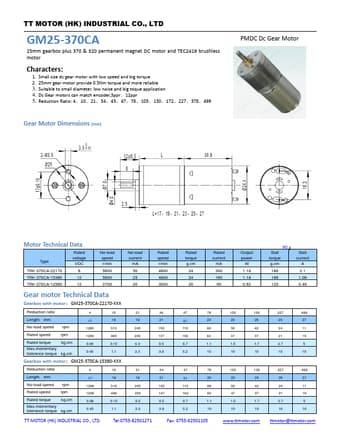

Datasheet preview – GM25-370CA

Datasheet Details

Part number GM25-370CA
Manufacturer TT MOTOR
File Size 367.72 KB
Description PMDC Dc Gear Motor
Datasheet download datasheet GM25-370CA Datasheet
Additional preview pages of the GM25-370CA datasheet.

📁 Similar Datasheet

  • GM2500 - 6A/4A Low EMI Synchronous Buck Converter (GONGMO)
  • GM2501 - P-CHANNEL ENHANCEMENT MODE POWER MOSFET (GTM)
  • GM2501 - 10MHz 1A Load Point Buck Regulator (GONGMO)
  • GM2502 - 2A/4A Low EMI Synchronous Buck Converter (GONGMO)
  • GM2506 - 6A/4A Low EMI Synchronous Buck Converter (GONGMO)
  • GM2526 - DUAL USB POWER SWITCH (Gamma)
  • GM201200 - 200 x 128 dots Display Module (OPTO Logic)
  • GM2102 - CONSTANT CURRENT DC/DC WHITE LED DRIVER (Gamma)
  • GM2110 - (GM2110 / GM2120) XGA/SXGA LCD Monitor Controller (Genesis)
  • GM2113 - CMOS POSITIVE VOLTAGE REGULATOR (GTM)
Other Datasheets by TT MOTOR

    Full PDF Text Transcription

    Click to expand full text
    TT MOTOR (HK) INDUSTRIAL CO., LTD GM25-370CA 25mm gearbox plus 370 & 320 permanent magnet DC motor and TEC2419 brushless motor Characters: 1. Small size dc gear motor with low speed and big torque 2. 25mm gear motor provide 0.5Nm torque and more reliable 3. Suitable to small diameter, low noise and big toque application 4. Dc Gear motors can match encoder,3ppr、12ppr 5. Reduction Ratio: 4、10、21、34、45、47、78、103、130、172、227、378、499 Gear Motor Dimensions (mm) PMDC Dc Gear Motor Motor Technical Data Type Rated voltage VDC TRK-370CA-22170 6 TRK-370CA-15360 12 TRK-370CA-12560 12 No-load speed r/min 5600 5600 3700 No-load current mA 50 25 20 Rated speed r/min 4800 4800 3000 Rated torque g.cm 24 24 20 Rated current mA 300 160 90 Output power W 1.18 1.18 0.
