GM3255 - DC-DC CONVERTOR BOOST REGULATOR

Datasheet Summary

Description

GM3255 products are 280 kHz switching regulators with a high efficiency, 1.5 A integrated switch.

These parts operate over a wide input voltage range, from 2.7 V to 30 V.

Features

  • such as frequency synchronization, shutdown, and feedback controls for either positive or negative voltage regulation. Features Integrated Power Switch: 1.5 A Guaranteed Input Voltage Range: 2.7 V to 30 V High Frequency Allows for Small Components Minimum External Components Easy External Synchronization Built in Overcurrent Protection Frequency Foldback Reduces Component Stress During an Overcurrent Condition Thermal Shutdown with Hysteresis Regulates Either Positive or Negative Output Voltage.

📥 Download Datasheet

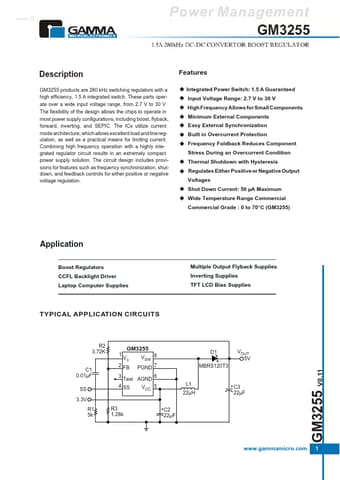

Datasheet preview – GM3255
