5N20V

GE5N20V

5N20V Features

* RDS(ON) < 36mΩ @ VGS=2.7V RDS(ON) < 27.5mΩ @ VGS=4.5V

* High Power and current handing capability

* Lead free product is acquired

* Surface Mount Package

* VDS = 20V,ID = 5A Marking and pin Assignment APPLICATIONS

* Battery protection

* Load switch

* Power management TS

5N20V General Description

The GE5N20V uses advanced trench technology to provide excellent RDS(ON), rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility. This device is suitable for use as a Battery protection or in other Switching application. Schematic dia.

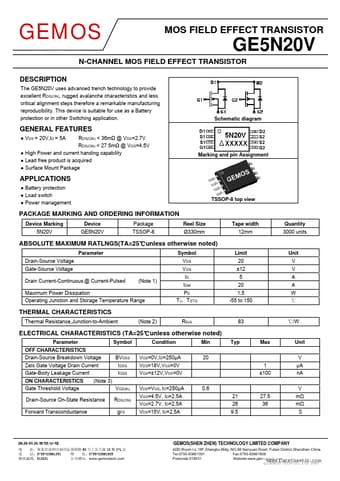

5N20V Datasheet (301.50 KB)
