5N25 Datasheet, Mosfet, UNISONIC TECHNOLOGIES

5N25 Features

  • Mosfet
  • RDS(ON)<1.2Ω @VGS=10V
  • Low gate charge ( Typ=14nC)
  • Low CRSS ( Typ=6.0pF)
  • High switching speed
  • SYMBOL
  • ORDERING INFORMATION

PDF File Details

Part number:

5N25

Manufacturer:

UNISONIC TECHNOLOGIES

File Size:

314.42kb

Download:

📄 Datasheet

Description:

3.8a 250v logic n-channel mosfet. The U TC 5N25 is an N-Cha nnel e nhancement MOSF ET, it uses UTC’s advanc ed tech nology to provi de c ustomers with a minim um on-s

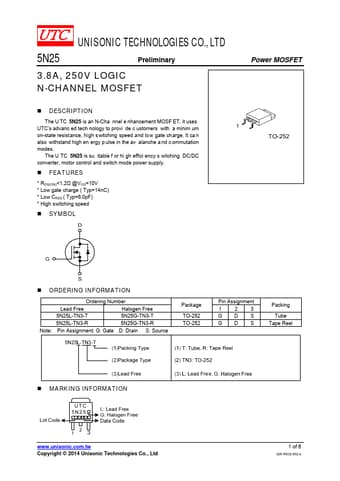

Datasheet Preview: 5N25 📥 Download PDF (314.42kb)
Page 2 of 5N25 Page 3 of 5N25
