1N3890R

The 1N3890R is Silicon Fast Recovery Diode designed by GeneSiC.

Product Overview

GeneSiC

Part number	1N3890R, 1N3889
Manufacturer	GeneSiC
File Size	720.16 KB
Description	Silicon Fast Recovery Diode
Datasheet	1N3889-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: 1N3890R, 1N3889. Please refer to the document for exact specifications by model.

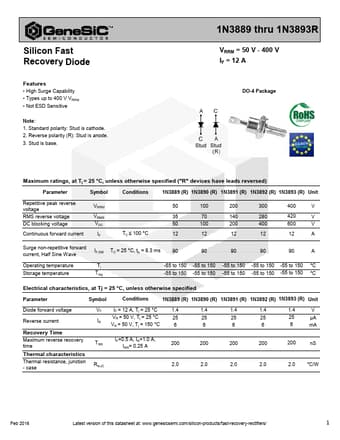

Additional preview pages of the 1N3890R datasheet.

High Surge Capability.
Types up to 400 V VRRM.
Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. 1N3889 thru 1N3893R VRRM = 50 V - 400 V IF = 12 A DO-4 Package Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions 1N3889 (R) 1N3890 (R) 1N3891 (R) 1N3892 (R) 1N3893 (R) Unit Repetitive peak reverse voltage RMS reverse voltage DC.
