2W005M Single Phase Silicon Bridge Rectifier

2W005M Description

Single Phase Silicon Bridge Rectifier 2W005M thru 2W04M VRRM = 50 V - 400 V IO = 2 A .

2W005M Features

* Ideal for printed circuit board
* Low forward voltage drop
* Low leakage current
* High temperature soldering guaranteed: 250⁰C/ 10 seconds, 0.375" lead length, .5 lbs (2.3kg) tension
* Types from 50 V up to 400 V VRRM
* Not ESD Sensitive WOM Packag

📥 Download Datasheet

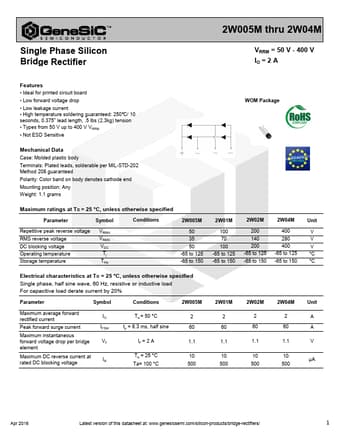

Preview of 2W005M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2W005M
Manufacturer
GeneSiC
File Size
283.81 KB
Datasheet
2W005M-GeneSiC.pdf
Description
Single Phase Silicon Bridge Rectifier
