DB105G - Single Phase Glass Passivated Silicon Bridge Rectifier

Product Overview

GeneSiC

📥 Download Datasheet

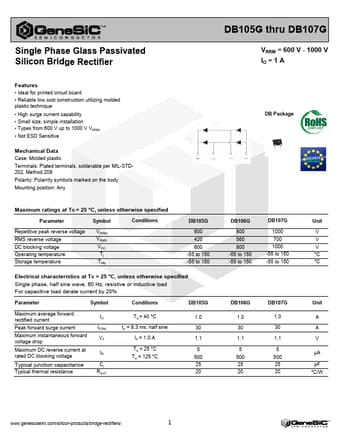

DB105G Single Phase Glass Passivated Silicon Bridge Rectifier by GeneSiC - Datasheet Preview — Datasheet preview – DB105G

Datasheet Details

Part number	DB105G
Manufacturer	GeneSiC
File Size	305.67 KB
Description	Single Phase Glass Passivated Silicon Bridge Rectifier
Datasheet	DB105G Datasheet
Additional preview pages of the DB105G datasheet.

Product details

Features

Ideal for printed circuit board.
Reliable low cost construction utilizing molded plastic technique.
High surge current capability.
Small size, simple installation.
Types from 600 V up to 1000 V VRRM.
Not ESD Sensitive Mechanical Data Case: Molded plastic Terminals: Plated terminals, solderable per MIL-STD202, Method 208 Polarity: Polarrity symbols marked on the body Mounting position: Any DB Package Maximum ratings at Tc = 25 °C, unless ot.
