GBL04

The GBL04 is Single Phase Glass Passivated Silicon Bridge Rectifier designed by GeneSiC.

Product Overview

GeneSiC

Part number	GBL04, GBL005
Manufacturer	GeneSiC
File Size	331.67 KB
Description	Single Phase Glass Passivated Silicon Bridge Rectifier
Datasheet	GBL005-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: GBL04, GBL005. Please refer to the document for exact specifications by model.

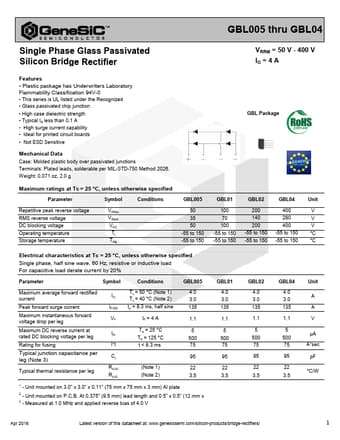

Additional preview pages of the GBL04 datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
This series is UL listed under the Recognized.
Glass passivated chip junction.
High case dielectric strength.
Typical IR less than 0,1 A.
High surge current capability.
Ideal for printed circuit boards.
Not ESD Sensitive Mechanical Data Case: Molded plastic body over passivated junctions Terminals: Plated leads, solderable per MIL-STD-750 Method.
